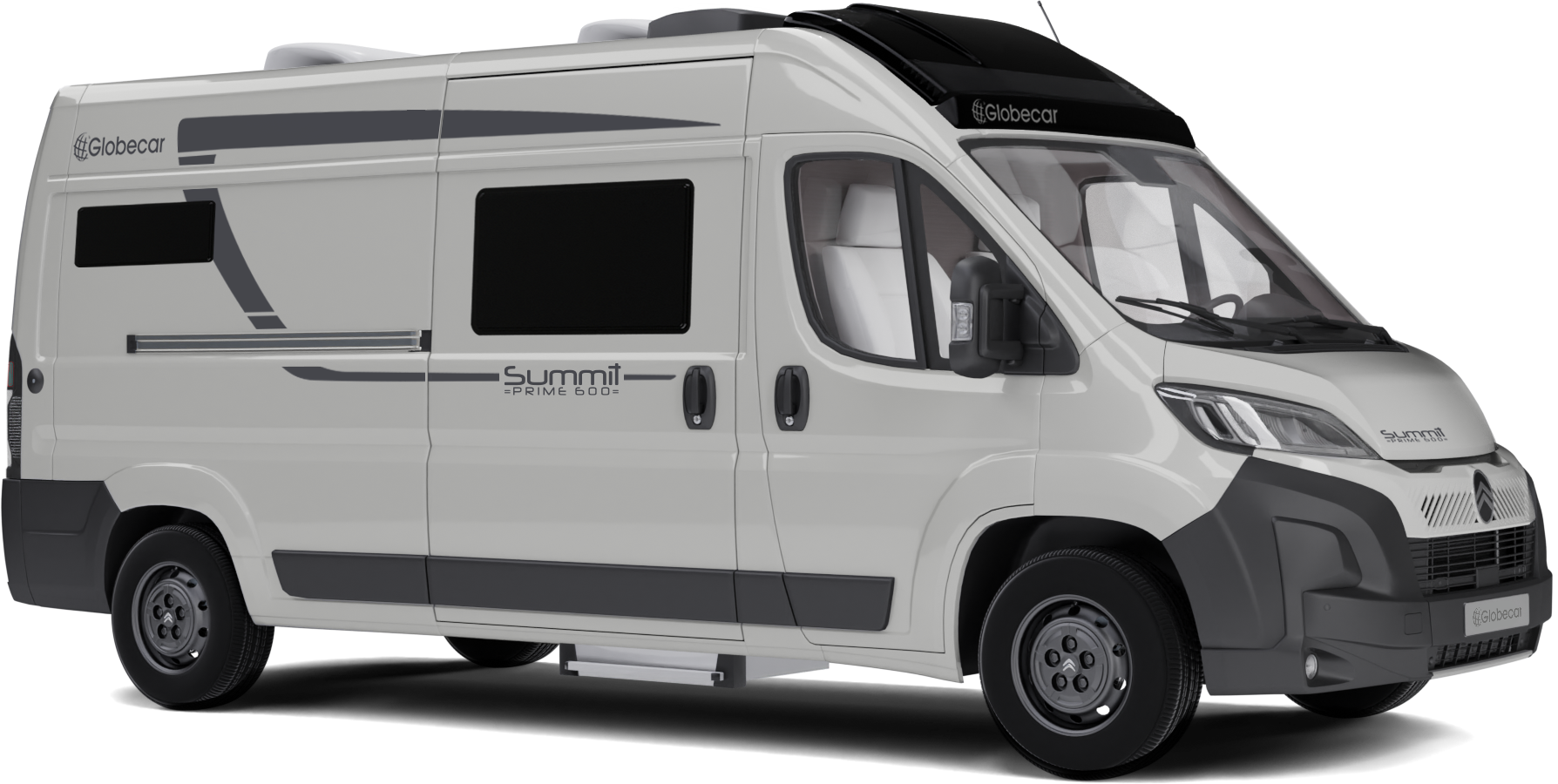

SUMMIT PRIME 600

KEY INFORMATION

SLEEPS

2 (+1 optional)

SEATS

4

MPLM

3300 kg

LENGTH

5998 mm

WIDTH

2050 mm

HEIGHT

2580 mm

SPECIAL FEATURES

FEATURES

Extra large seating area
With ergonomically shaped upholstery, table with rotating part (optional)

Spacious kitchen cupboards
and drawers offering space for all utensils

TECHNICAL DATA

Vehicle Dimensions

Length:
5998mm
Height:
2580mm
Width:
2050mm
Width:
4035mm
Width:
1905mm

On Board Technology

Fresh Water
100L
Waste Water
100
Heating
Truma Combi 4
Gas bottle box for (kg)
1 x 11 and 1 x 5
Charger in A
16
Battery
12V/95Ah
230 V Sockets
2/1
Refrigerator in L (capacity/including freezer)
ca. 100/8
Absorber/Compressor
Compressor

Living Area

Sleeping places
2 (+1 optional)
Seats/Seatbelts
3/3 (+1 optional)/4 (+1 optional)
Window living room
5
Roof hood with blackout blind
3
Rear bed in mm (approx)
1.960 x 1.560/1.430
Third bed in mm (approx)
1.600 x 720/650 x 100
Possible Isofix connections
2

Weight & Load

MPLM
3300kg
Mass in running order
2835kg
Payload
465kg
