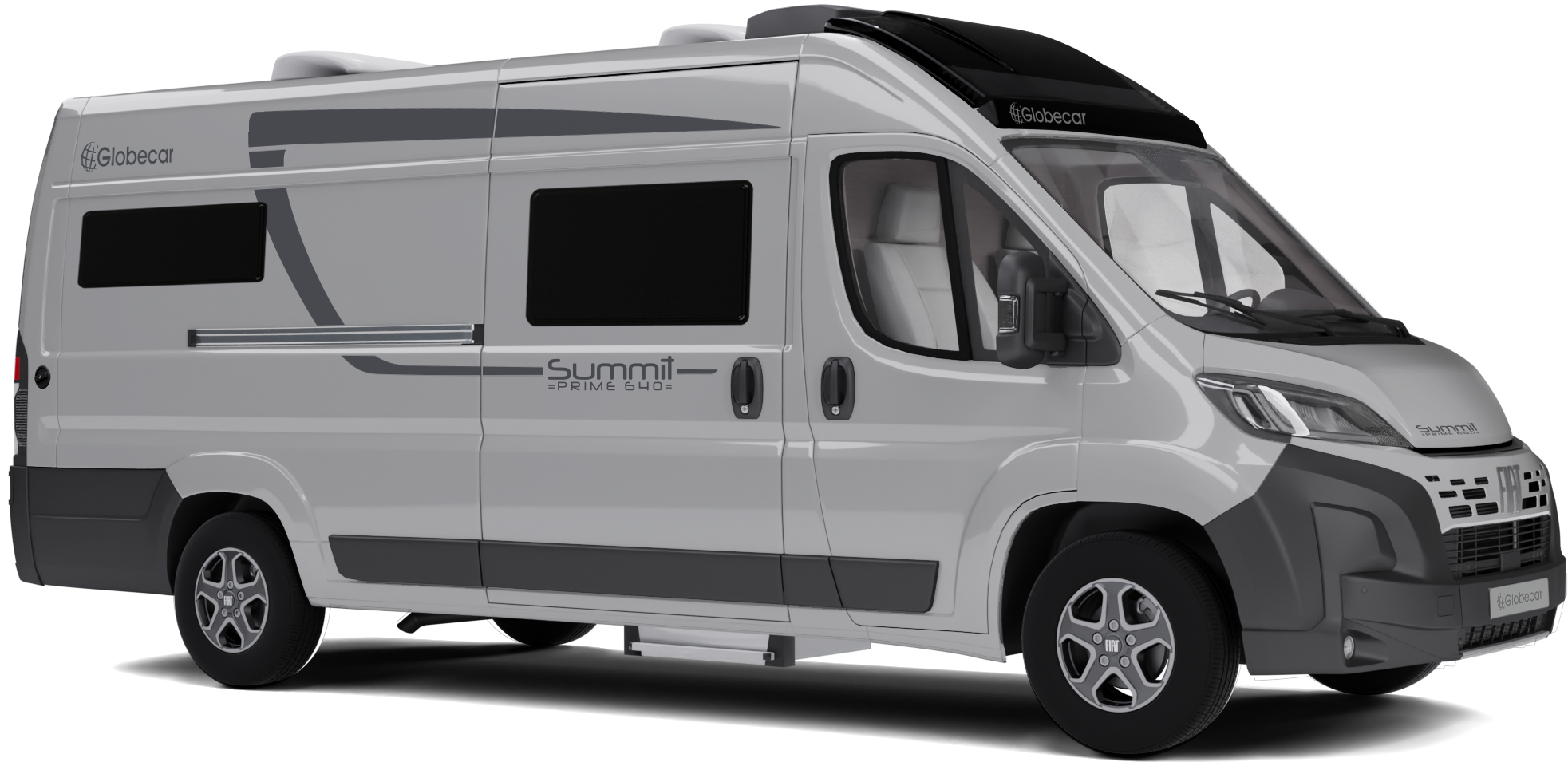

SUMMIT PRIME 640
KEY INFORMATION
SLEEPS
2 (+1 optional)
SEATS
3 (+1 optional)
MPLM
3500 kg
LENGTH
6358 mm
WIDTH
2050 mm
HEIGHT
2580 mm
SPECIAL FEATURES
- Feeling of space similar to that of an integrated motorhome
- Bench made of ergonomically shaped upholstery
- High-quality frame windows for a particularly Dynamic, automotive look
- Rosewood wood decor Samba world of living (standard for UK)
FEATURES
Sleep Like Kings
with large single beds in the sleep zone
Large Swing wall bathroom
with sophisticated technology thanks to the swivel wall concept (sanitary package optional)
TECHNICAL DATA
Vehicle Dimensions
Length: | 6358mm |
Height: | 2580mm |
Width: | 2050mm |
Width: | 4035mm |
Width: | 1902mm |
On Board Technology
Fresh Water | 100L |
Waste Water | 100 |
Heating | Truma Combi 4 |
Boiler Capacity in L (approx.) | 10 |
Gas bottle box for (kg) | 2 x 11 |
Charger in A | 16 |
Battery | 12V/95Ah |
230 V Sockets | 2/1 |
Refrigerator in L (capacity/including freezer) | ca. 100/8 |
Absorber/Compressor | Compressor |
Living Area
Sleeping places | 2 (+1 optional) |
Seats/Seatbelts | 3/3 (+1 optional)/4 (+1 optional) |
Window living room | 4 |
Roof hood with blackout blind | 3 |
Rear bed in mm (approx) | 2.000/1.800 x 800/ alternative 2.000/1.800 x 1.900 |
Third bed in mm (approx) | 1.600 x 720/650 x 100 |
Possible Isofix connections | 2 |
Weight & Load
MPLM | 3500kg |
Mass in running order | 3010kg |
Payload | 490kg |
