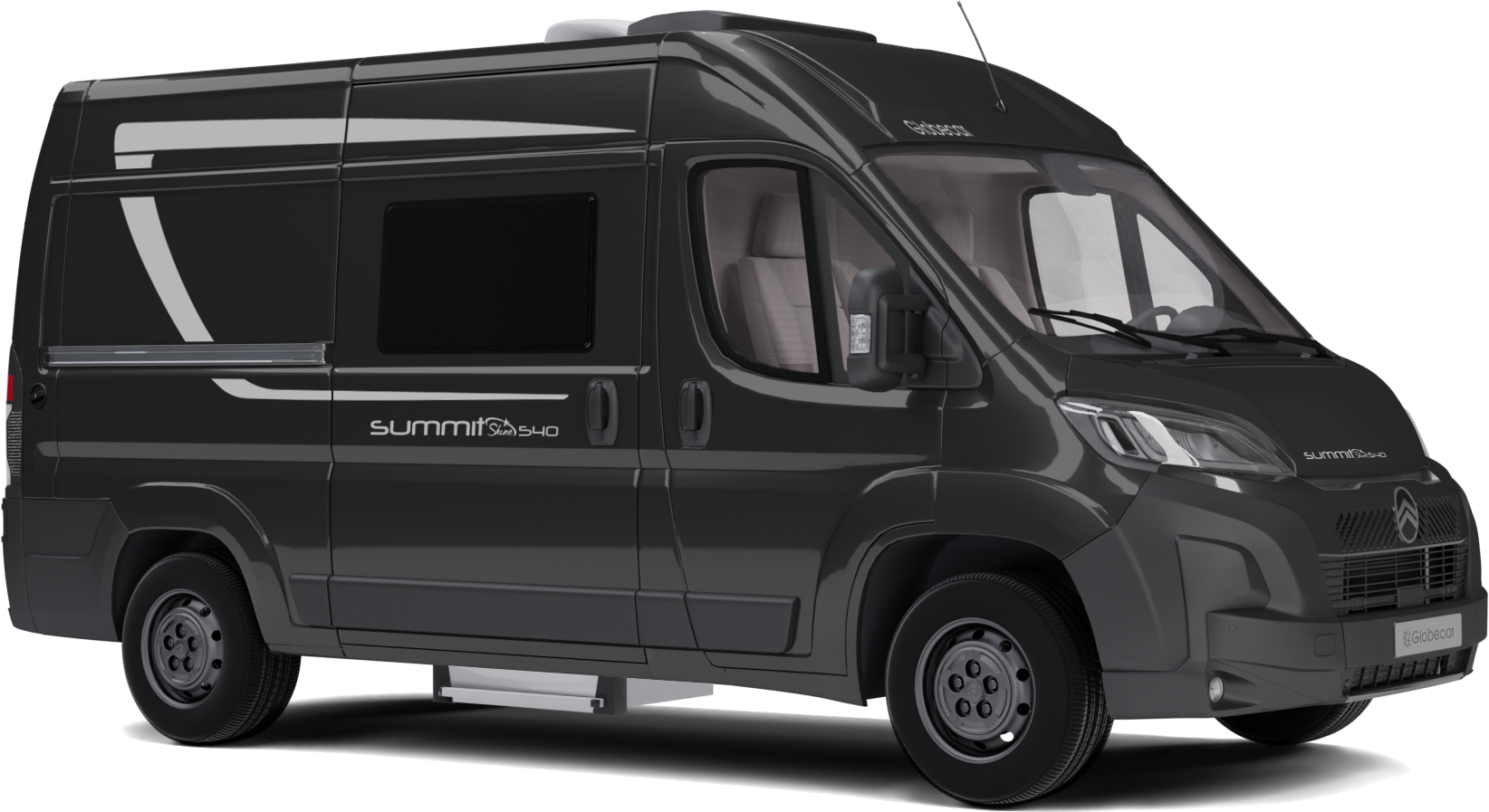

SUMMIT SHINE 540
KEY INFORMATION
SLEEPS
2 (+1 optional)
SEATS
3 (+1 optional)
MPLM
3000 kg
LENGTH
5413 mm
WIDTH
2050 mm
HEIGHT
2580 mm
SPECIAL FEATURES
- Atmospheric lighting throughout the living space.
- Inviting seating group with Easy Move table including travel function.
FEATURES
Kitchen with compressor fridge
More work surface thanks to the fold-able extension.
Mocha wood decor
(Grigio Lucente ) world of living, Easy Move table with travel function
TECHNICAL DATA
Vehicle Dimensions
Length: | 5413mm |
Height: | 2580mm |
Width: | 2050mm |
Width: | 3450mm |
Width: | 1905mm |
On Board Technology
Fresh Water | 85L |
Waste Water | 100 |
Heating | Truma Combi 4 |
Boiler Capacity in L (Approx) | 10 |
Gas bottle box for (kg) | 1 x 11 and 1 x 5 |
Charger in A | 16 |
Battery | 12V/95Ah |
230 V Sockets | 2/1 |
Refrigerator in L (capacity/including freezer) | ca. 100/8 |
Absorber/Compressor | Compressor |
Living Area
Sleeping places | 2 (+1 optional) |
Seats/Seatbelts | 3/3 (+1 optional)/4 (+1 optional) |
Window living room | 4 |
Roof hood with blackout blind | 2 |
Rear bed in mm (approx) | 1.960 x 1.200/1.410 |
Third bed in mm (approx) | 1.600 x 720/650 x 100 |
Possible Isofix connections | 1 |
Weight & Load
MPLM | 3300kg |
Mass in running order | 2695kg |
Payload | 605kg |
